Port of Le Havre

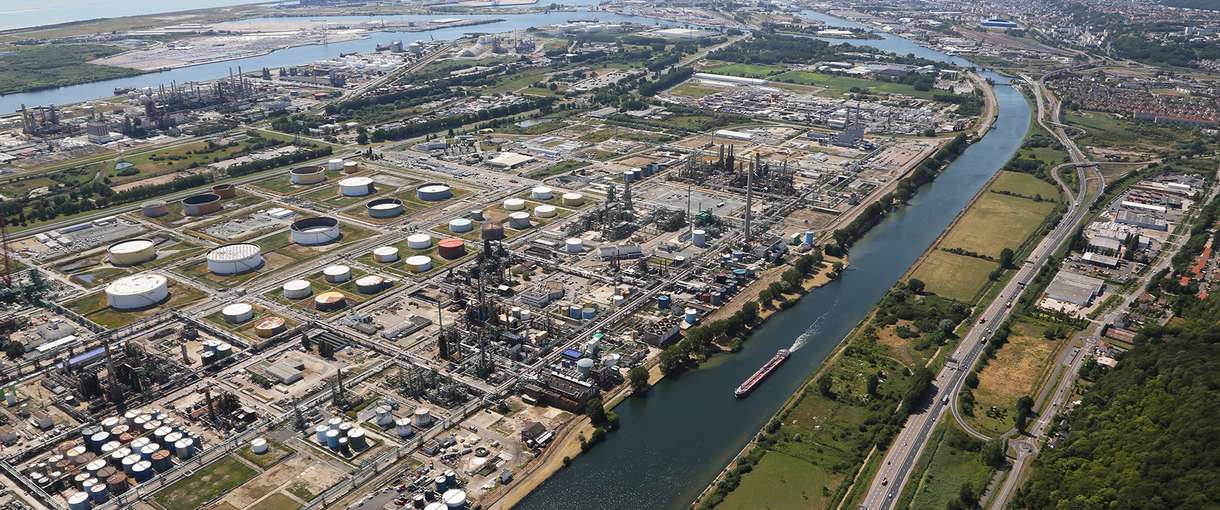

Located in the deep-sea port, this integrated chemical platform gathers major industrials of base and specialty chemicals. Thus, it is a major refining and chemical complex in Europe. This area is strategic for the supply chain with direct access to the multimodal connexions (sea, rail, barge, pipe, road) and easy access to utility networks.

The Port of Le Havre

Le Havre gathers an important part of these activities as a European-scale refinery integrated with a European-scale petrochemical complex, 7 chemical plants (fertilizers, 2 worldwide scale additives plants, solvents, plastics, biofuels, rubber, etc.)

Economic size of le Havre's chemical activities

A total of 38,800 employees on the industrial platform and 2050 sites. The chemistry activity represents:
Chemicals (mineral and organic chemistry, plastic, additives & lubricants, fertilizers ): 5,436 jobs
Rubber : 2,381 jobs
Refining & Coking: 2,970 jobs

• YARA: Ammonia production 340kt/year and urea production 300kt/year used as fertilizers or industrial applications
• TOTAL Fluides:
  Oudalle is the TOTAL Group’s special fluids production site in EMEA  and the biggest in the world/it produces a wide range of high value-added hydrocarbon products implementing state-of-the-art technologies 400 kt/years of products
• LUBRIZOL:
  Biggest plant of the group in EMEA with a production of 300kt/year of additives
• CHEVRON ORONITE:
  unique plant of the group in EMEA, 250kt/year of additives
• ERAMET:
  the world’s #1 producer of ferronickel. The nickel refinery of the group is located in Le Havre cluster. It produces high-purity nickel metal, nickel chloride, nickel, hydrocarbonate, cobalt chloride solutions, and ferric chloride solutions.
• ESTENER:
  advanced biofuel plant, capacity 75kt/year
• OSILUB:
  regeneration of used mineral oils, capacity 120kt/year
• OMNOVA SOLUTIONS:
  resins, latex, elastomer additives

Via Sea (liquide bulk and containers)

Crude oil, Naphtha, LPG, Ethylene, Methanol, Fuels, Benzene, Aromatics, Styrene, Propylene, Butadiene, Base oils, Additives, Fertilizers, Solvants, Biofuels, Lubricants, Other chemicals, Soda, Acides, bitumen

Via Road/Rail

Benzene, Styrene, Soude, Butadiène, Fuels, LPG, PP/PE, Lubricants, Polyoléfines, Propylene, Commodities, Other chemicals

Pipelines

Ethylene, butadiene, H2, propane, butane, additives, base oils, other chemicals, crude oil, fuels

River

Base oils, fuels, solvents, biofuels, paraffinic, chemicals, taylor-made solutions

Logistics

Facilities for the storage and transportation of chemical products are provided by several companies: rubis Terminal, dmS (dCa-mory Shipp), lBC Group, Nor- gal, GCa Storage, lohéac, derijke, hoyer, den hartogh, TransEuroChem ...

The Belgian logistics supplier Katoen Natie has established bases in the Le Havre Port-Jérôme areas to manage the Total Petrochemicals and ExxonMobil chemical platforms. Sea, river, road-tanker and rail- tanker terminals offer long and short-term storages, reception and redelivery of raw chemicals for import/export and inland traffic.

Le Havre industrial port offers storages, handling and distribution facilities. The port has eleven piers (terminals), which are equipped to handle up to 550,000 dwt super-tankers. Pipelines from the refineries in Normandy and the Paris area are linked to the terminals. The petroleum products storage capacity in le Havre is greater than 6,000,000 cu.m.

• Crude oil and refined products storage 5,700,000 cubic meters
• Motor fuels, heavy fuels and bunkers provides storage of 350,000 cubic meters .
• Chemicals and petrochemicals: hazardous cargoes providing 60,000 cubic meters worth of storage.
• Non hazardous liquids 105,000 cubic meters.
• Liquefied petroleum gases 60,000 cubic meters
• Distribution and storage of hazardous products 10,800 metric tons and 3,600 square foot facitity.

All these companies offer other services such as deballasting and degasing in cleaning stations, bunkering possibility, additivation and blending and are authorized by French customs to complete operations with free trade facilities.

Training and research

More than 2,600 corporate researchers, 800 academic researchers in Rouen, Caen and Le Havre universities. 1,500 skilled technicians work in the oil and chemical industry.
Four high engineering schools with R&D laboratories and training programmes in Chemical Engineering, Materials and Plastic Processing:

• iNSa (National Institute of Applied Sciences) in Rouen
• ENSiCaEN (High Engineering School) in Caen
• iSPa (Alençon Plastics Superior Institute) and iSmO (Higher Institute for Mould Technology) in Alençon
• ENSPm (IFP training) in Rouen and Lillebonne: training of managerial, engineering and technical staff from the oil, gas, petrochemical, and chemical industries

International corporate research centers:

• arkema/Cerdato (for engineered polymers)
• Exxonmobil,
• CreG Total (oil & refining, BTL “Bio- mass to Liquids).

Utilities

Power  (400 kV)
Steam (shared supply of steam with two operators on the area) – 200 000 t/yr – Bars – 5 industrials connected – 4km of network – additional 10km steam network in project.
Natural Gas : up to 40 bars, all the industrial area is connected
Industrial Gases : nitrogen, oxygen, carbon dioxide
Water (different grades): industrial (52 km of pipe, 13.5 Mm3 and 43 users) and tap water


Effluent management

Industrial waste effluents are treated by a number of specialized companies: Ecohuile, Sedibex, Scori/Teris, Serep, Scoredi, Sarp Onyx, Sonolub, Citron, etc.
SEDIBEX: biggest european hazardous waste treatment plant with energy recovery (Steam)
Polluted industrial water treatment (SEREP).
The handling of hazardous products is operated on specialized platforms: Care in Le Havre.

Dry bulk

Dangerous packaged products and containers 750 containers / 12 500 m2 (CARE)

Liquid bulk

All the liquid bulk storage platforms are connected to the sea. Le Havre is a deepsea Port with no draft limit for crude oil and high drafts for other products (until 13,8m). 95 silos (PE, PS, PP,…) 90 000m3 (Katoen Natie) 4 operators / 5,6 millions of m3 for fuels and chemicals / Taylor made storage solutions (heated tanks, stainless steel tanks, adapted offer for new products) , quadrimodal with access to the road, barge, pipe, rail (hazardous products : LBC SOGESTROL)
